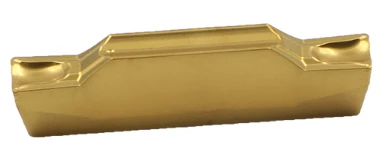

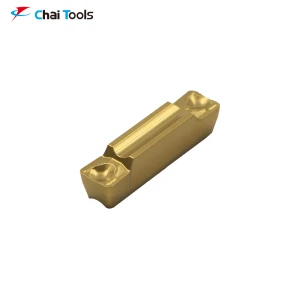

TDGU 200 CT5320 Grooving Insert with 2mm cutting width
- Model
- TDGU 200 CT5320
Review
Description
Product Description
1.Matched with TTER/L, TTFR/F, TGIFR/L and TTIR/L parting and grooving holders.
2.Cutting width is 2mm.
3.The insert is same with TDXU 2E insert from TaeguTec, closely quality but much lower price.
4.Material grade CT5320: suitable for steel, stainless steel and cast iron processing.
5.Application: external/internal turning and grooving process.

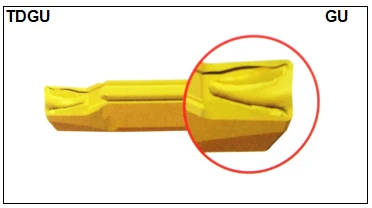

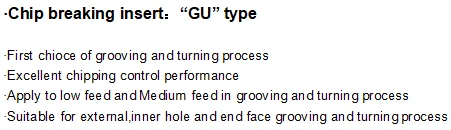

TDGU INSERT
|
Insert Model
|

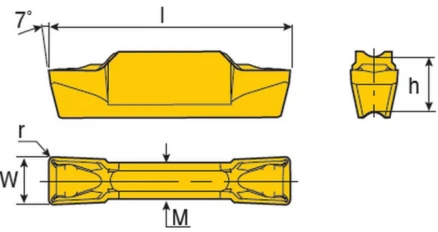

Dimension(mm) | Turning |
Grooving
|
Material Grade
|
||||||
W±0.05 | M | l | h | r | Feed (mm/rev) |
ap(mm)
|

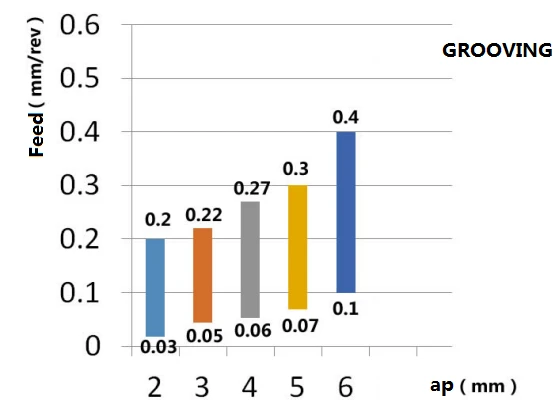

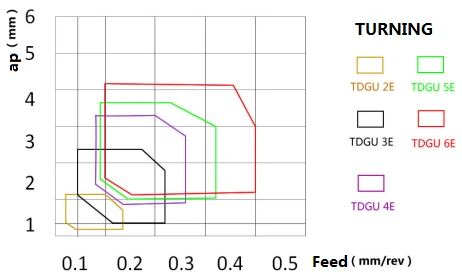

Feed (mm/rev)
|
CT5320
|
||
TDGU 200 | 2.0 | 1.7 | 20.0 | 4.7 | 0.3 | 0.12-0.18 | 0.4-1.2 | 0.03-0.18 | ● | |
TDGU 250 | 2.5 | 2.2 | 20.0 | 4.7 | 0.3 | 0.15-0.19 | 0.4-1.8 | 0.04-0.11 | ||
TDGU 300 | 3.0 | 2.2 | 20.0 | 4.7 | 0.3 | 0.15-0.19 | 0.4-1.8 | 0.04-0.11 | ||
|
TDGU 400
|
4.0 | 3.0 | 20.0 | 4.7 | 0.4 | 0.18-0.24 |
0.5-2.4
|
0.09-0.15
|
||
TDGU 500 | 5.0 | 4.0 | 25.0 | 5.2 | 0.4 | 0.20-0.30 | 0.5-3.0 | 0.11-0.20 | ||
|
TDGU 600
|
6.0 | 5.0 | 25.0 | 5.2 | 0.8 | 0.22-0.36 |
0.1-0.4
|
0.13-0.23
|
||

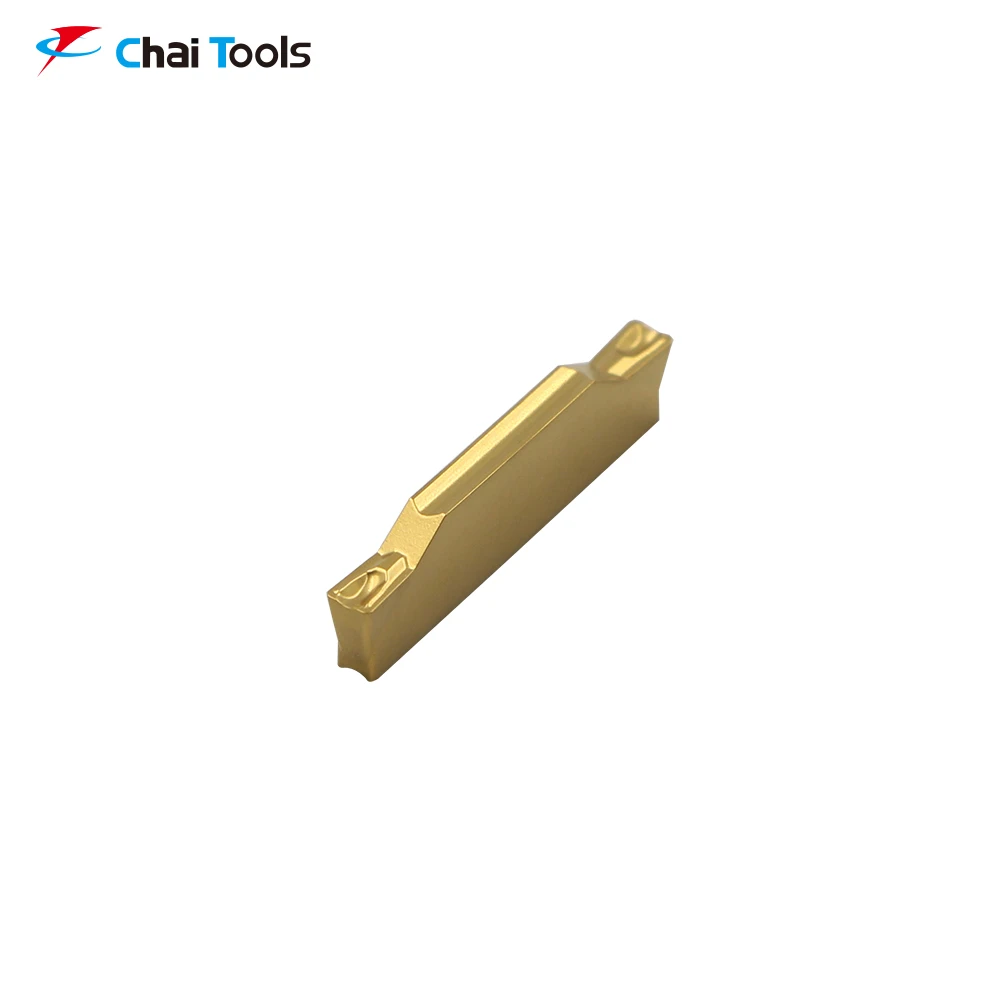

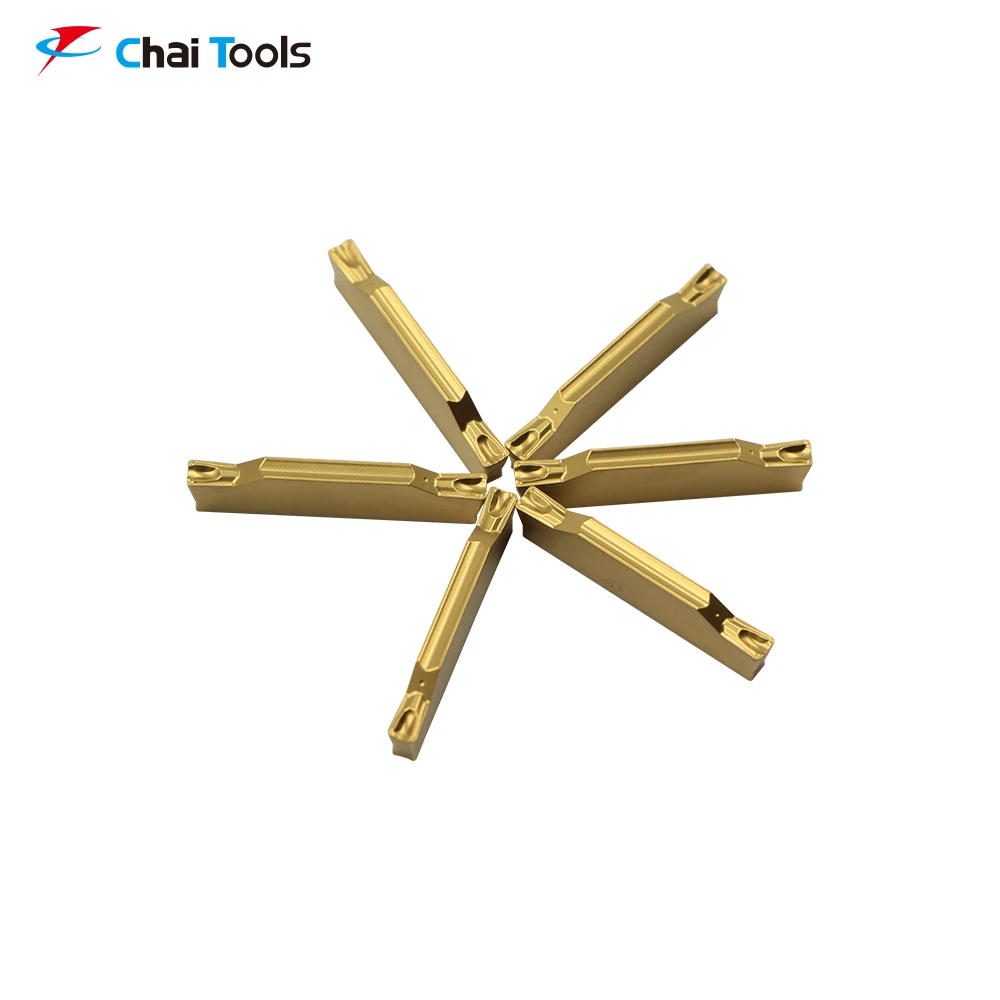

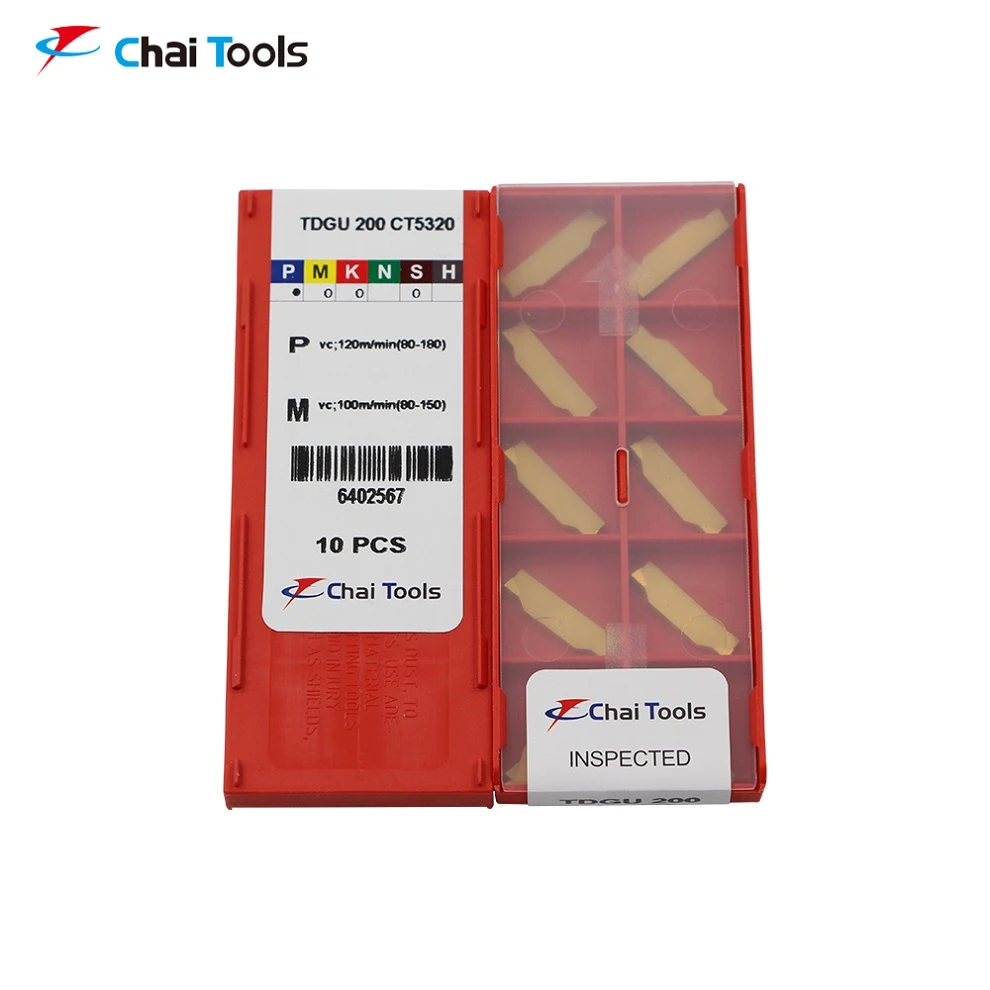

Product Pictures
